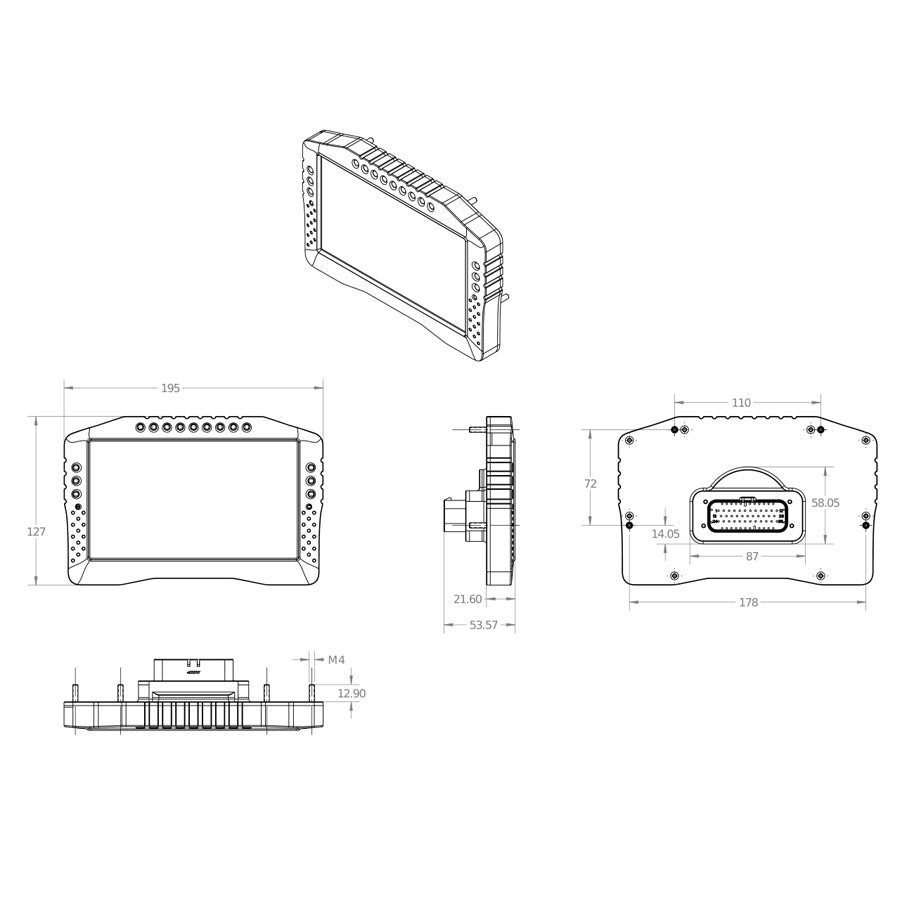

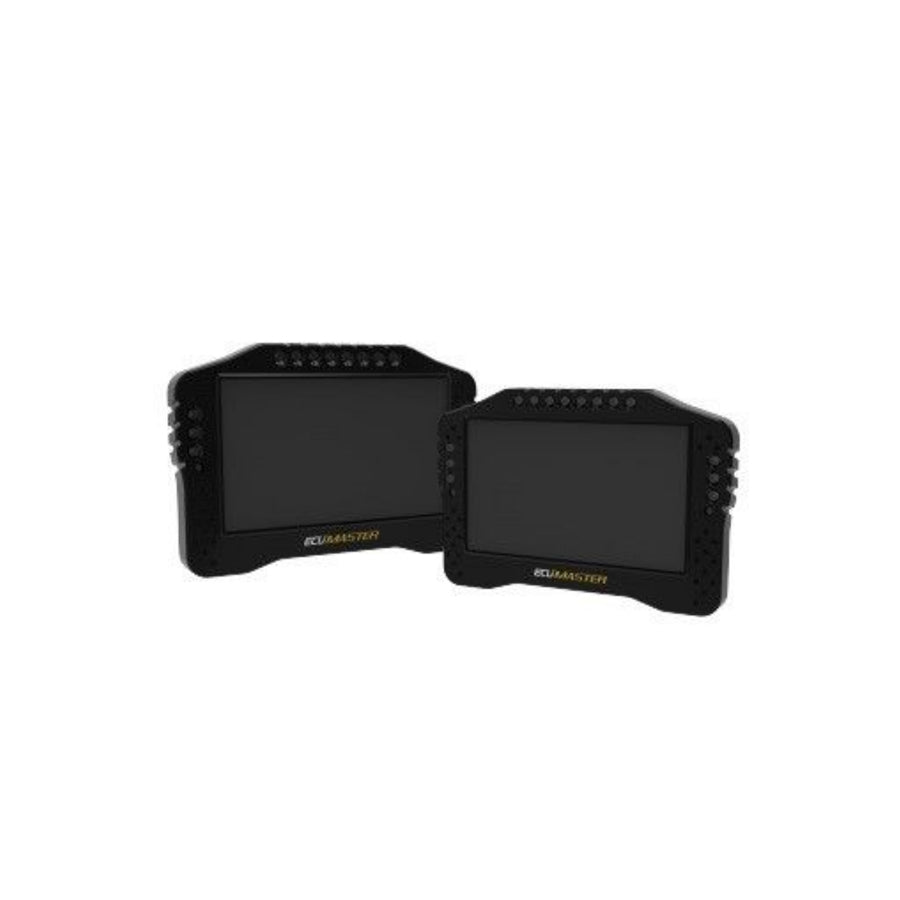

ECUMASTER ADU7 Racing Display – Rev. 2

ECUMASTER developed the ADU5 and ADU7 racing display range in response to demand for affordable, fully configurable displays with advanced data logging. Designed in cooperation with professional drivers and race engineers, ADU presents critical vehicle information and clearly visible alarms.

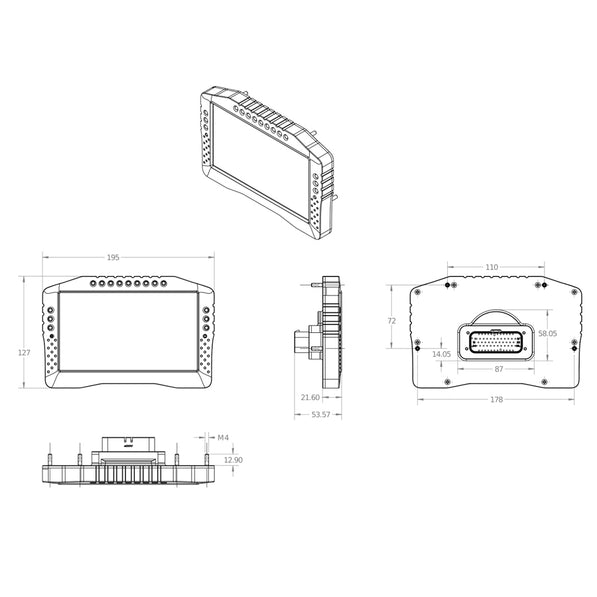

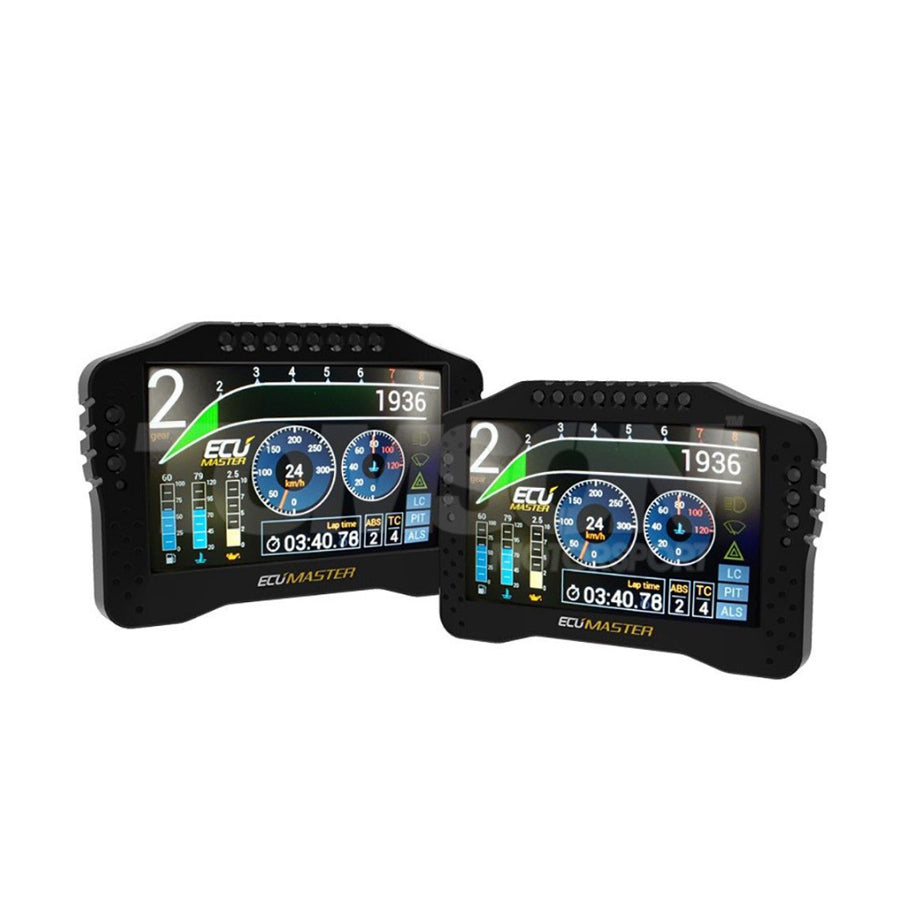

Available in 5-inch and 7-inch versions, the ADU features a high-resolution, anti-glare TFT display with excellent visibility. Configurable screen pages can be tailored for practice, qualifying, racing and fault reporting. Pages can change automatically or manually. Gauges, icons and other display elements are configurable using Windows-based software.

Overlay alerts can show important messages – such as low oil pressure or fastest lap – regardless of the active page. Fifteen ultra-bright RGB LEDs can be configured for shift lights, alarms, fuel warnings and more.

Infrared timing or GPS turns ADU into an advanced lap timer with predictive lap times. Qualifying mode uses a continuously updated reference best lap; configurable timers can also be used for pit stops. Thermal cameras can monitor brake disc and tire temperatures (up to 16 measurement points per tire).

Two independent CAN bus interfaces communicate with other vehicle systems. Configurable CAN definitions support a broad range of ECUs. A 32-bit automotive controller and graphics processor deliver smooth high-resolution graphics at 50 frames per second. Data channels can be logged to a USB flash drive at up to 500 Hz. The unit has a black-anodized CNC-machined enclosure.

General specifications

  • Operating temperature: AEC-Q100 Grade 3, -40 to +85 °C
  • Internal battery protection
  • Operating voltage: 6–22 V, transient immunity to ISO 7637
  • Housing: IP60 CNC-machined aluminum; IP67 option
  • Connector: 1 × 35-pin AMP Automotive (Autosport connector option)
  • PC communication: CAN bus via ECUMASTER USBtoCAN, Peak or Kvaser
  • Display: 800 × 600 TFT
  • Brightness: 5-inch 600 cd/m²; 7-inch 1,000 cd/m²

Inputs and outputs

  • 8 analog inputs, 10-bit, 0–5 V, software-selectable 10 kΩ pull-up/pull-down; usable as switches
  • 8 digital inputs with software-selectable VR/Hall sensitivity and 4.7 kΩ pull-up resistors; usable for engine and wheel speeds, flex fuel, turbo speed or switches
  • 2 low-side outputs, up to 2 A
  • 1 analog 0–5 V output, 10-bit
  • Monitored 5 V supply output for external sensors

Communications

  • 2 × CAN 2.0 A/B interfaces: 125, 250, 500 or 1,000 kbps
  • User-defined CAN streams
  • RS232 Rx/Tx serial communication: AiM, ECUMASTER, Hondata K-Pro and Autronic protocols
  • USB for data logging to external flash storage

Other features

  • 15 ultra-bright RGB LEDs
  • 3D accelerometer and 3D gyroscope
  • Battery-backed real-time clock
  • Ambient light sensor for automatic brightness control
  • Internal temperature sensor
