Ecumaster GPS-to-CAN Module v2

Ecumaster GPS-to-CAN Module v2

ECUMASTER GPS-to-CAN V2

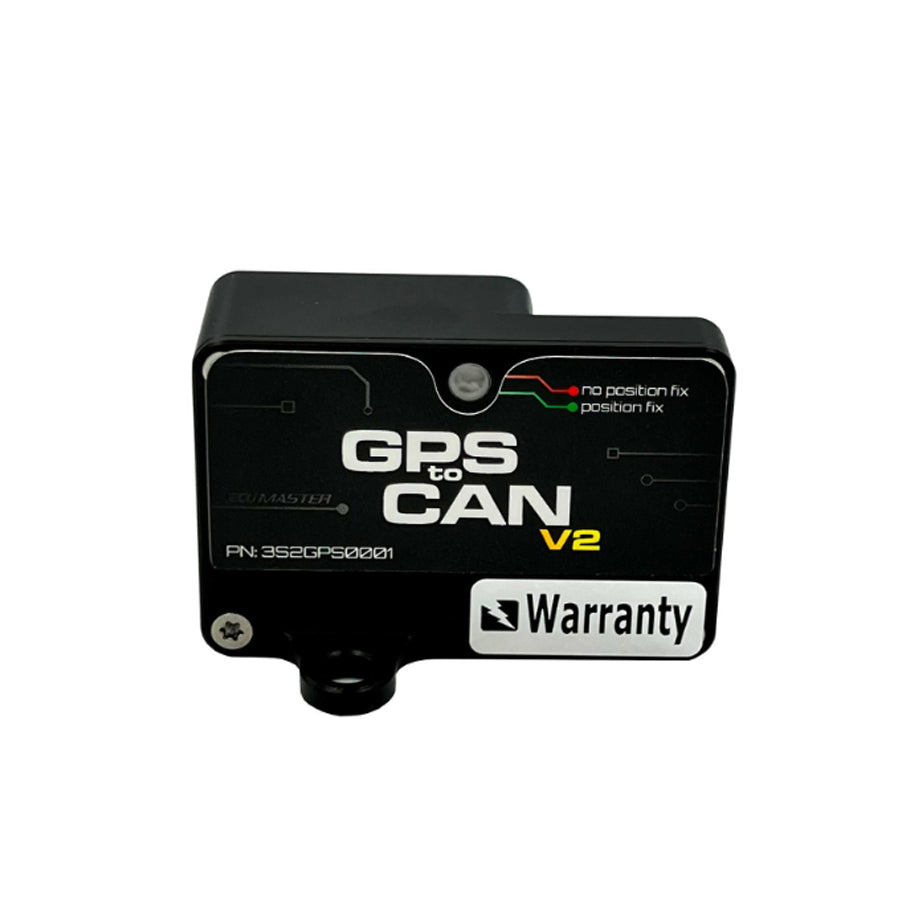

This high-accuracy GPS tracking module offers a 25 Hz position update rate. The included external active GPS antenna improves satellite reception. Position information is transmitted via CAN bus, making the module suitable for ECUMASTER ADU data loggers and displays. An onboard LED indicates device status.

The built-in 3-axis accelerometer and gyroscope provide vehicle motion data. GPS and motion data can be used for speed, position, heading, altitude and lap-time analysis, including real-time lap timing, predictive timing, mapping and offline data analysis.

Technical specifications

  • Supply voltage: 6–22 V with overvoltage protection
  • Reverse-polarity protection up to 16 V
  • Protection rating: IP65
  • Dimensions: 66 × 53 × 44 mm; weight: 92 g

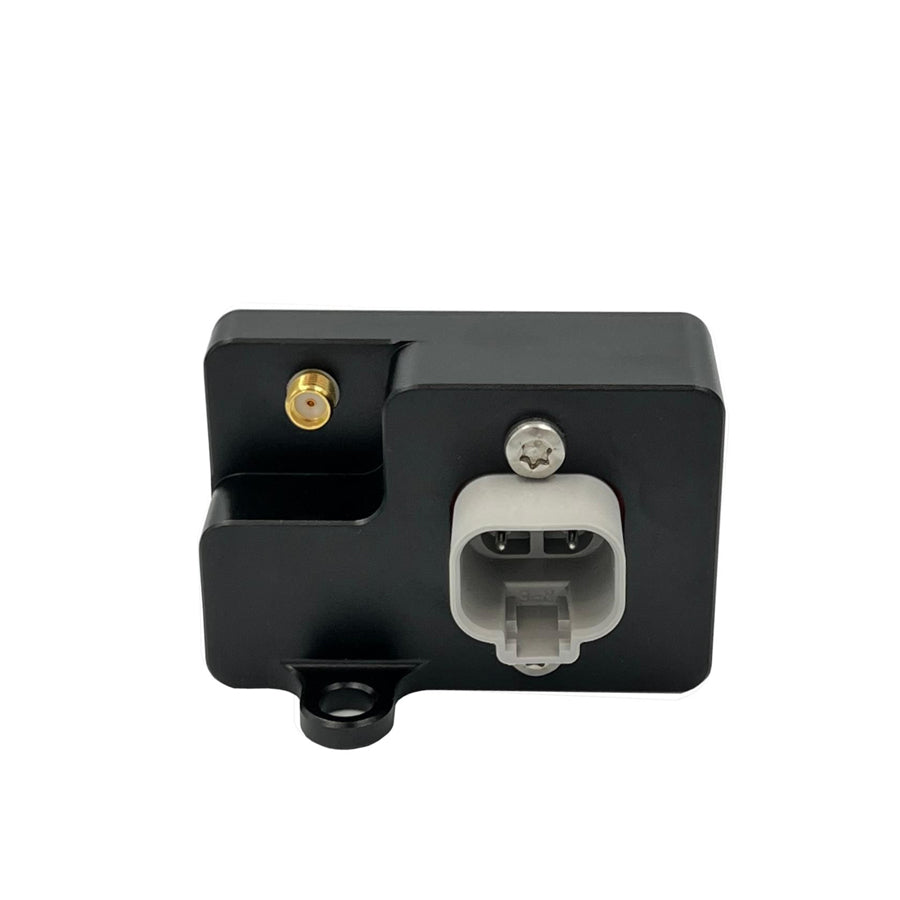

  • Plug: DEUTSCH DT06-4S
  • Socket: DEUTSCH DT15-4P
  • CAN rates: 125, 250, 500 and 1,000 kbps

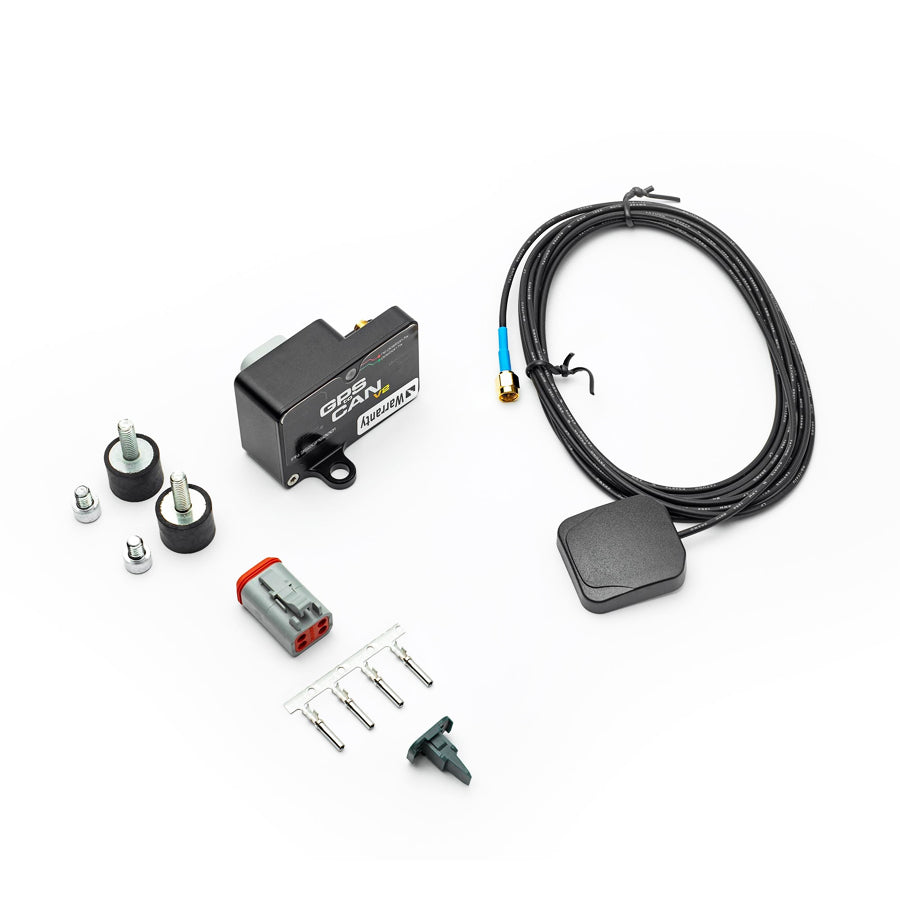

Included

  • 1 × ECUMASTER GPS-to-CAN V2
  • 1 × mounting kit with vibration isolators
  • 1 × gray four-pin plug with terminals
  • 1 × GPS antenna A.166
  • 1 × pinout sheet
