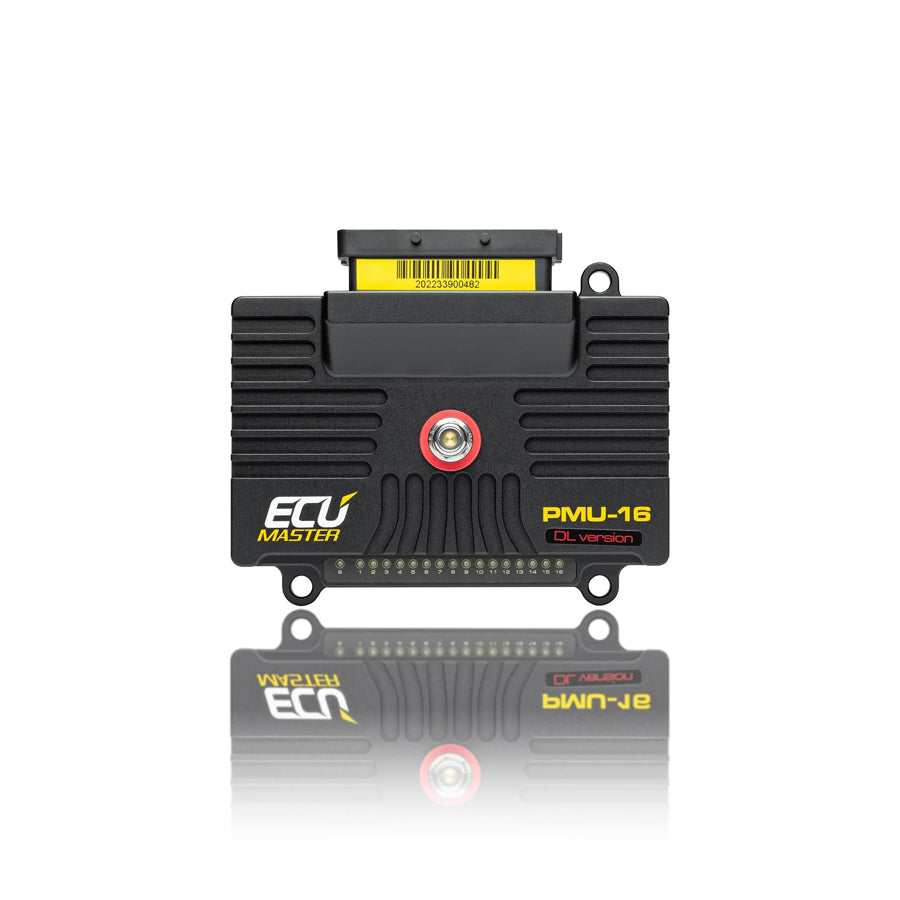

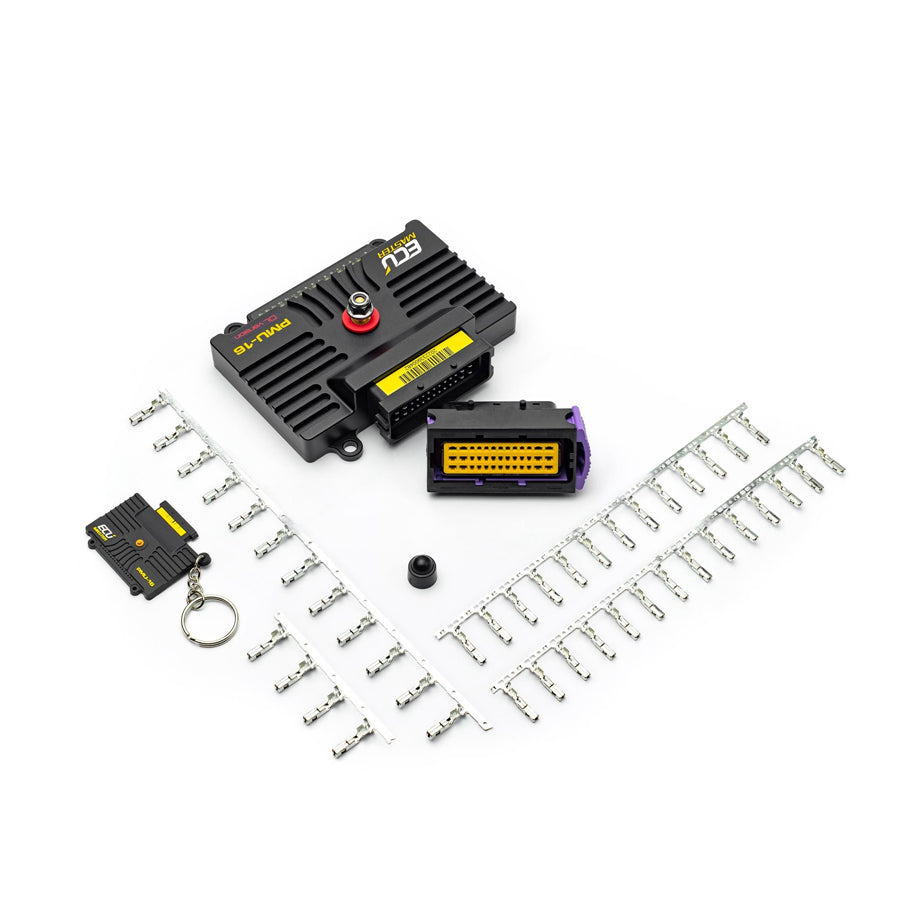

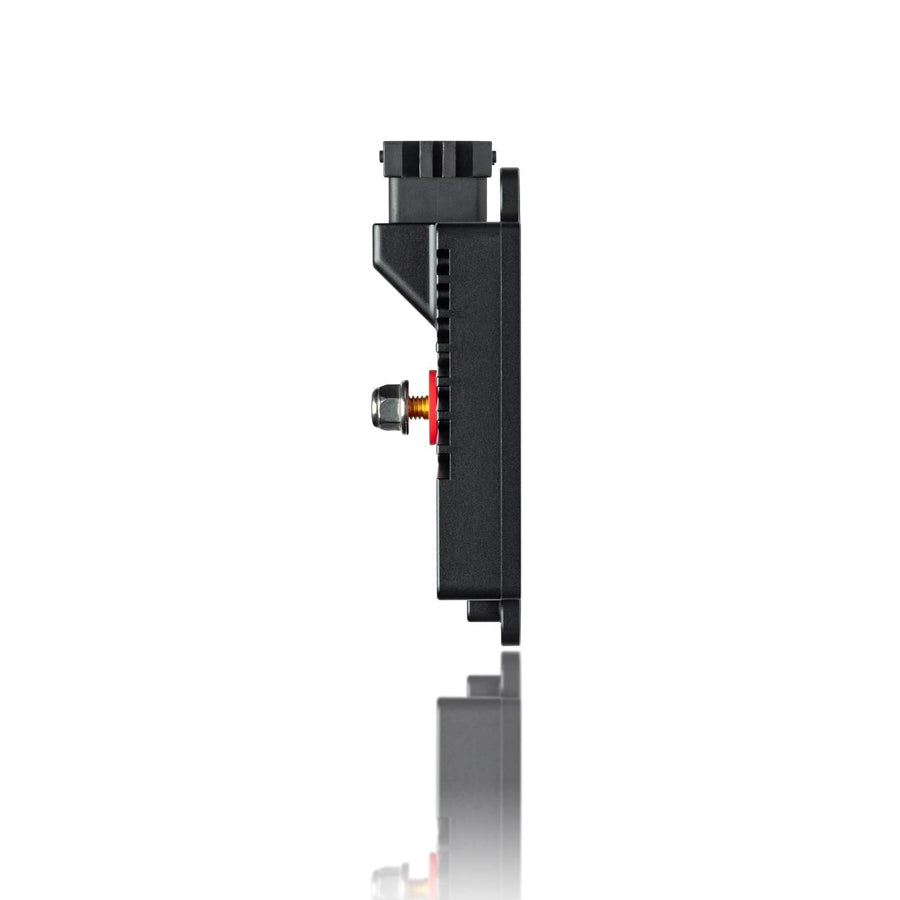

ECUMASTER PMU16 DL – Power Management Unit with Data Logging

Compared with the PMU16, the PMU16 DL adds efficient, temperature-resistant onboard data logging memory. It replaces conventional fuses and relays, eliminating complicated wiring, vibration and temperature sensitivity, and difficult diagnostics.

The PMU provides 16 high-current outputs, with multiple units supported when more outputs are required. Continuous current sensing and automatic reset protect individual channels from overcurrent. Output status, current and voltage can be logged and transmitted over CAN to a dashboard display.

Each output can be configured using analog inputs or CAN data, including mathematical and logic operations. LEDs indicate the status of each output. CAN keypads and steering-wheel switches significantly simplify the vehicle wiring. A built-in accelerometer and gyroscope allow vehicle dynamics logging and crash-triggered inertia switching.

The PMU is assembled on an automated production line with optical inspection, automated testing and burn-in. The protected PCB, selected automotive-grade components and IP65 enclosure are designed for harsh conditions.

General specifications

  • Operating temperature: AEC-Q100 Grade 1, -40 to +125 °C
  • Processor: 32-bit automotive, 90 MIPS
  • Built-in reverse-polarity protection
  • Operating voltage: 6–22 V; ISO 7637 transient immunity
  • IP65 custom CNC-machined aluminum housing
  • Size: 177 × 84 × 46.1 mm; weight: 360 g
  • Connectors: AS shell size 24 (19 × 12 AWG), AS shell size 14 (37 × 22 AWG), RADLOK 10 mm battery terminal
  • PC connection: CAN via ECUMASTER USBtoCAN, PEAK CAN or KVASER

Outputs

  • 14 high-side outputs rated 25 A continuous and 2 rated 40 A continuous, with thermal and overcurrent protection; outputs may be paired for higher current
  • 6 low-side 1 A outputs (13 A peak) with thermal shutdown
  • Total continuous output current: 200 A
  • Output current control step: 100 mA
  • Dedicated windshield wiper output with brake function
  • Monitored 5 V / 500 mA external sensor supply
  • Current and voltage measurement on each output

Inputs and communication

  • 16 analog inputs, 10-bit, protected 0–5 V, software-selectable 10 kΩ pull-ups/pull-downs
  • Support for two ECUMASTER CAN keypads (4/6/8/12 keys), one MoTeC/RaceGrade or one Grayhill keypad
  • 16 bi-color output status LEDs
  • 3D accelerometer and 3D gyroscope for logging and crash detection
  • Real-time clock with capacitor backup for up to 3 days
  • 2 × CAN 2.0 A/B, 125/250/500/1,000 kbps
  • User-defined CAN input/output signals with bit masking; up to 100 input messages

Data logging and logic

  • 256 MB built-in logging memory (up to approx. 3 hours at full bandwidth)
  • Per-channel configurable logging frequency up to 500 Hz
  • Computer-based logging supported
  • Logic operators: AND, OR, NOT, XOR, comparisons, IsTrue, IsFalse, Toggle, Flash, Pulse
  • 100 functions, 250 operations, update frequency 500 Hz
