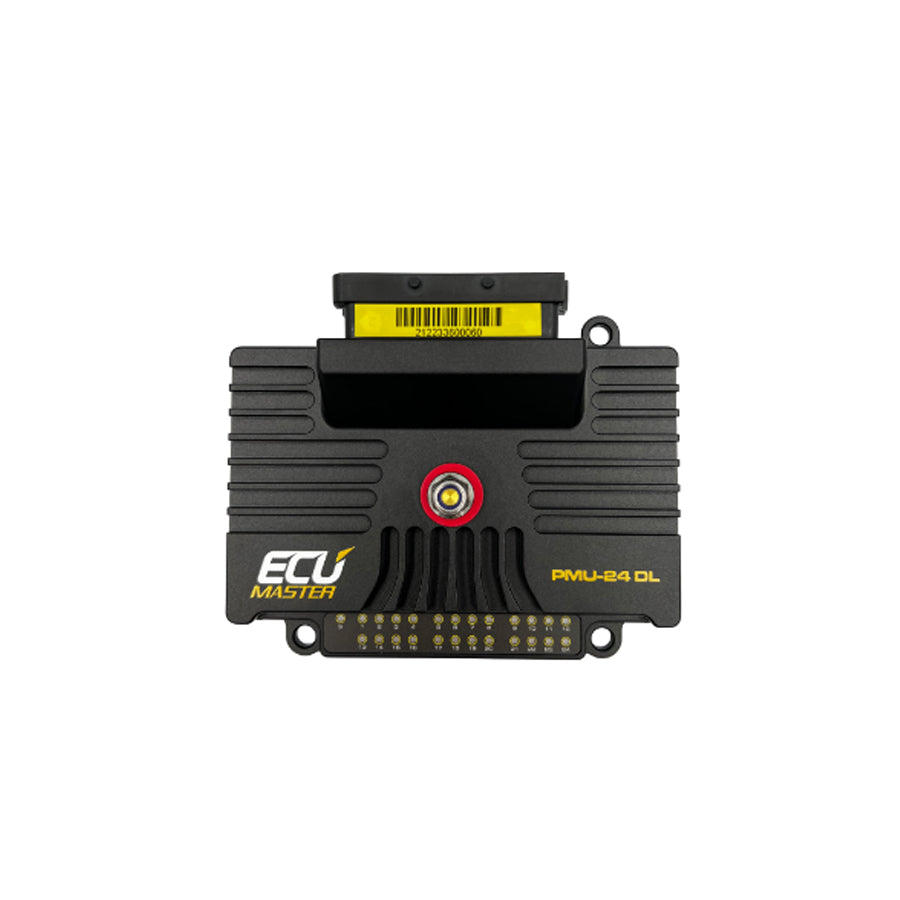

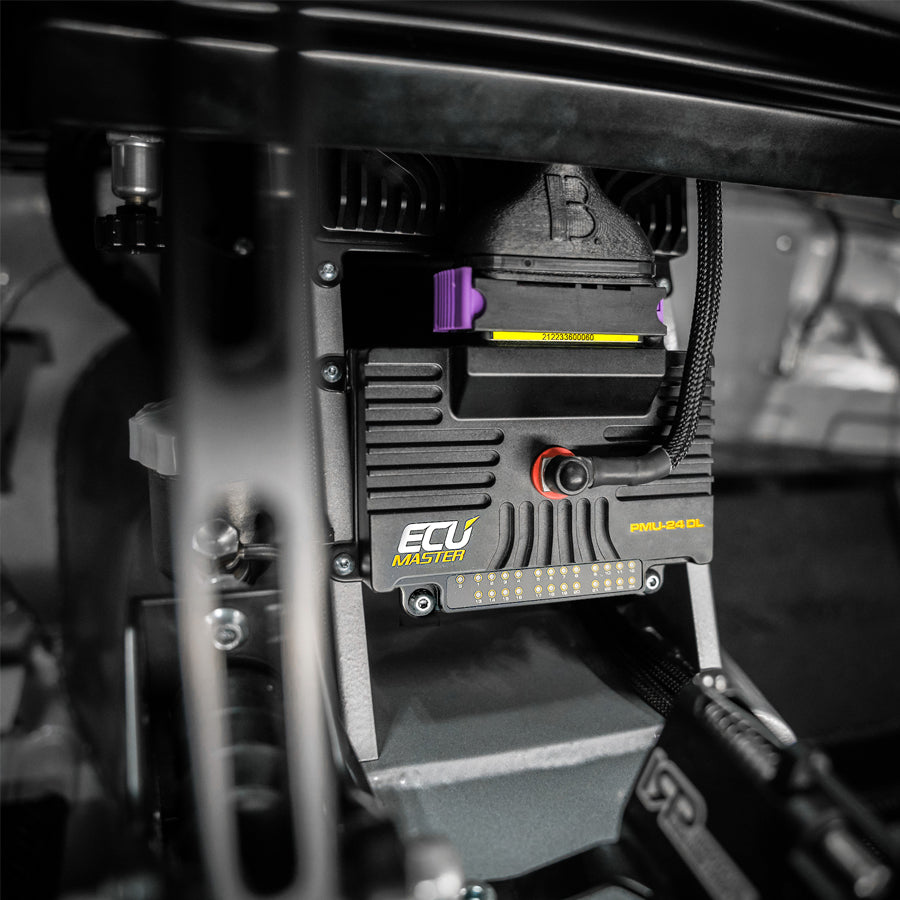

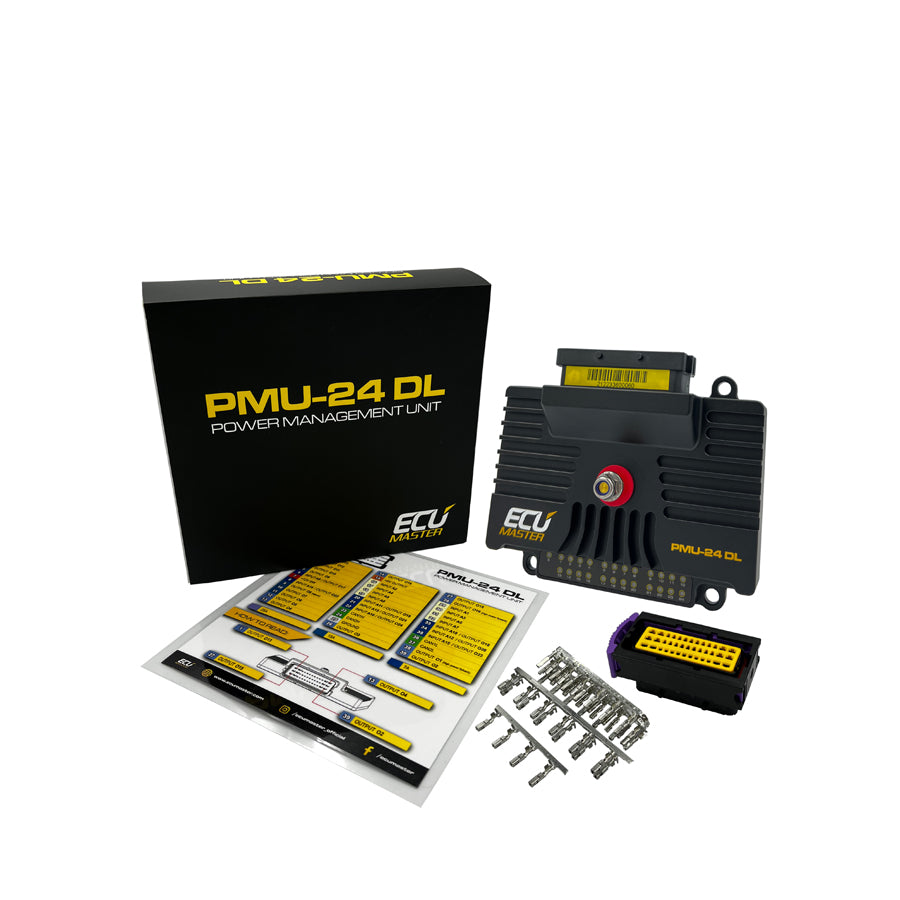

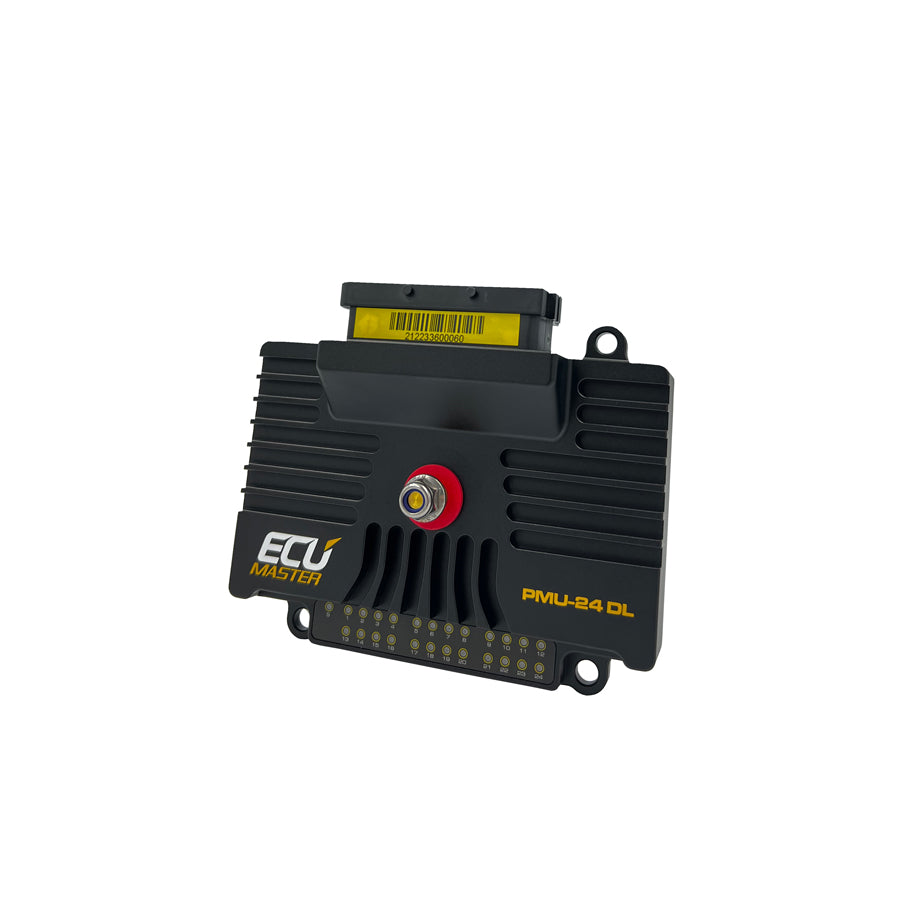

ECUMASTER PMU-24 DL

The PMU-24 DL is an upgraded power management unit offering the features of the PMU-16 with 24 high-side outputs and built-in data logging as standard. Output status, voltage and current data can be sent via CAN bus to the dashboard for driver alerts. Logged data can be downloaded for later analysis.

Specifications

  • Total continuous current: 170 A
  • Operating voltage: 6–22 V, ISO 7637 transient immunity
  • Temperature range: AEC-Q100 Grade 1, -40 to +125 °C
  • 10 × 25 A high-side outputs with PWM capability
  • 6 × 15 A high-side outputs
  • 8 × 7 A high-side outputs
  • Up to 16 analog inputs
  • 24 tri-color LEDs for individual output status
  • 2 × CAN 2.0 A/B interfaces
  • 256 MB built-in data logging memory
  • Logging frequency up to 500 Hz
  • Real-time clock for timestamping logged data
  • 3D accelerometer and gyroscope
  • Built-in crash-detection inertia switch
  • Convenient access to CAN bus data (import/export)
